    SS Forging Hydraulic Cylinder Parts Rough Machining ISO9001 Certification

    Ask Lasest Price
    Brand Name : HUIXUAN
    Model Number : Hydraulic cylinder pedestal
    Certification : ISO9001:2008,BV,SGS,IST,UL.CTI
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000-4000 Ton/Month
    Delivery Time : 30-50 days
    • Product Details
    • Company Profile

    SS Forging Hydraulic Cylinder Parts Rough Machining ISO9001 Certification


    SS Forging Hydraulic Cylinder Parts Rough Machining ISO9001 Certification


    1, Products:

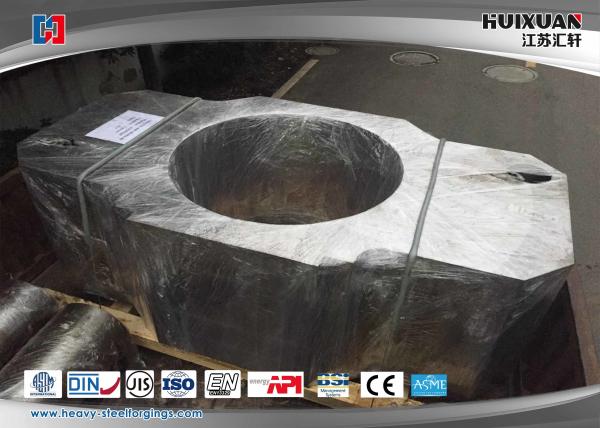

    hydraulic cylinder pedestal,bearing pedestal,hydraulic cylinder parts


    2, Products reference:

    MaterialQ345D,4140,4330,18CrNiMo7-6,4340
    Forging equipment6000T open die hydroress
    ApplicationHydraulic equipment parts
    Melting processEF+LF+VD
    Production process

    Forging+heat treatment+rough machining+QT

    Forging ratio

    ≥3.5

    Applicable standardASTM,ASME,DIN,JIS,ISO,BS,API,EN
    Executive standardJB/GB/EN/DIN/JIS/ASME/ASTM/ISO
    Certification authorityISO9001:2008,BV,SGS,IST,UL.CTI
    Delivery term

    Rough machining(N+T);QT


    Test equipment


    Spectrograph,ut device,tensile and impact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine

    ServiceOur service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

    3, Custom properties

    Material elementsCSiMnPSCrNiMo

    Others

    Q345D0.13-0.200.17-0.371.20-1.60≤0.030≤0.030≤0.30≤0.30--
    41400.38-0.430.15-0.350.60-0.90≤0.035≤0.0400.80-1.10--0.15-0.25-
    43300.28-0.330.10-0.350.85-1.15≤0.020≤0.0200.80-1.101.10-1.400.35-0.55-
    18CrNiMo7-60.15-0.210.17-0.350.50-0.90≤0.025≤0.0251.50-1.801.40-1.700.25-0.35
    43400.38-0.430.15-0.350.60-0.80≤0.035≤0.0400.70-0.901.65-2.000.20-0.30-


    Mechanical property


    Dia.(mm)


    TS/Rm(Mpa)


    YS/Rp0.2(Mpa)


    EL/A5(%)


    RA/Z(%)


    Type Of notch


    Impact energy


    HBW

    Q345D

    Ø25

    470-630

    ≥345

    ≥21

    --

    V

    -20℃≥34

    --

    4140

    Ø15

    740~1000

    450~850

    ≥12

    ≥25

    V

    ≥40

    ≤250HBS

    4330

    Ø10

    ≥1000

    ≥740

    ≥12

    ≥25

    V

    ≥42

    --

    18CrNiMo7-6

    Ø15

    ≥980

    ≥785

    ≥9

    ≥40

    V

    ≥47

    ≤269HBS

    4340

    Ø15

    ≥980

    ≥835

    ≥12

    ≥55

    V

    ≥78

    ≤179HBS

    4, Process procedure:

    Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment


    5, Commerce clause


    Max height1500MM
    MOQ1PC
    Delivery time30-50 days
    Packagewoode pallet,steel frame
    Delivery termFOB;CIF;CFR;DDU;
    Payment termT/T,LC
    Type of shipping

    By ocean,air


    6, Keywords

    Hydraulic cylinder pedestal parts,bearing pedestal is the key parts of fixed oil cylinder equipment.


    Features:

    1. High-precision dimensional tolerance;
    2. Excellent mechanical properties;
    3. Produce different dimension based on customer’s requirements;
    4. Advanced manufacture equipments and inspection devices;
    5. Excellent technical personality;
    6. Control the production procedure strictly;
    7. Pay attention on the package protection;
    8. Quality full service.
