JIANGSU HUI XUAN NEW ENERGY EQUIPMENT CO.,LTD Agent Wanted around world!
10 Years
| Ask Lasest Price | |
| Brand Name : | HUIXUAN |
| Model Number : | Alloy steel ball valve |
| Certification : | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3000-5000Ton/month |
| Delivery Time : | 30-50 days |

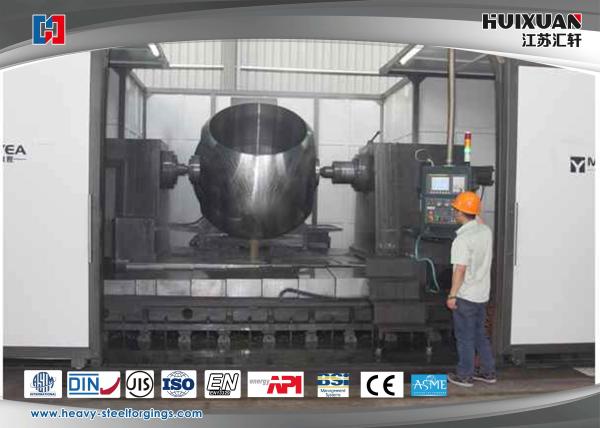

Cast Carbon Steel Forged Ball Valve Finish Machining For Petroleum Machinery
Products reference:
| Material | 35#,40Cr,Q345D,1Cr13,410 |
| Max dia | 1000MM |
| Application | Forging ball valve is mainly used for petroleum machinery,chemical machinery,electrical equipment,valve equipment industry |
| Melting process | EF+LF+VD |
| Production process | Forging+heat treatment+rough machining+finish machining |
| Forging ratio | ≥3.5 |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN ,PED,ASE |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO,BV,SGS,IST,UL.CTI |
| Delivery term | Rough machining(N+T);finish machining(Q+T) |
Test equipment | Spectrograph,ut device,tensile and impact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties
| Material elements | C | Si | Mn | P | S | Cr | Ni | Mo | Others |
| 35# | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.30 | ||
| Q345D | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 40Cr | 0.37-0.44 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.80-1.10 | ≤0.030 | -- | |
| 410 | ≤0.030 | ≤0.030 | ≤0.035 | 11.50-13.00 | ≤0.60 |
Mechanical property | Dia.(mm) | TS/Rm(Mpa) | YS/Rp0.2(Mpa) | EL/A5(%) | RA/Z(%) | Type Of notch | Impact energy | HBW |
| 35# | Ø25 | ≥530 | ≥315 | ≥20 | ≥45 | V | ≥55 | ≤197HBS |
| Q345D | Ø25 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥34 | -- |
| 40Cr | Ø25 | ≥980 | ≥785 | ≥9 | ≥45 | U | ≥47 | ≤207 |
| 410 | Ø25 | ≥540 | ≥345 | ≥25 | ≥55 | V | ≥78 | ≥159HBS |
Process procedure;
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Commerce clause
| Max weight | 5T |
| MOQ | 1PC |
| Delivey time | 30-50 Days |
| Package | Plywood case,wood pallet,steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| Type of shipping | By ocean,air |
Keywords:
Solid forging ball valve,ball shape forging,ball valve,ball valve is widely used for petroleum refining,long distance transport pipe line,chemical industry,papermaking,pharmacy,water conservancy,electric power,municipal administration,steel inductry
|
|
