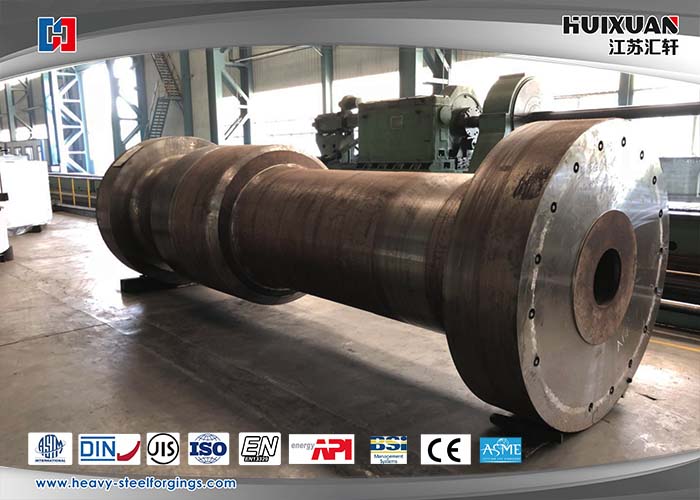

X3CrNiMo13-4 Industrial Steam Turbine Rotor Forging Steel Water Turbine Main Shaft

1, Products:

water turbine main shaft,hydro generator main shaft

2, Products reference

3, Custom properties

4, Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment

5, Commerce clause

6, Keywords:

Water turbine main shaft is the key parts of hydro electric installation,utilize water power to rotate water turbine,by means of connection of water turbine main shaft,magnet yoke,thrust block,other key components as well.transfter water energy into mechanical energy,If connect generator to water turbine,as water turbine rotate it will generate electric power,meanwhile mechanical energy transfer into electrical energy

Features:

• High-precision dimensional tolerance;
• Excellent mechanical properties;
• Produce different dimension based on customer’s requirements;
• Advanced manufacture equipments and inspection devices;
• Excellent technical personality;
• Control the production procedure strictly;
• Pay attention on the package protection;
• Quality full service.

Where to buy X3CrNiMo13-4,Mechanical property X3CrNiMo13-4,Chemical composition X3CrNiMo13-4,

Price X3CrNiMo13-4,customize X3CrNiMo13-4,parameters X3CrNiMo13-4

   Jiangsu Huixuan New Energy Equipment Co., Ltd.

Company Profile

       Jiangsu Huixuan New Energy Equipment Co., Ltd. was established in June, 2016, is one of the forging manufacturer especially for the forging export. We located in Jiangsu Province of mid-east of China with good location for abundant sea transportation and just 90km to Shanghai airport. We have five professional plants: free-die forging, ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 80,000 tons for various of free-die forgings, ring rollings and formed forgings.

      We have advanced supporting facilities, such as each of 10000t&3500t free-die forging hydraulic oil presses, each of 8T,5T,3T hammer,each of Ф9000mm and Ф5000mm ring rolling machine, one set of in-and-out material machine, 3 forging operators with the capacity of 150tons, 50tons and 20tons, various lifting vehicles, natural gas furnaces, chamber furnaces, sawing machines, drilling machines, heavy horizontal&vertical lathers, CNC machines, plane milling and boring machines, deep holeboring machines etc., totally more than 200 sets. All of these machines ensure to provide the coordinated process service from rough to finish machining. our customers are around the world,thanks to good company location we are able to provide fast ocean,air and railway transportation, achieved any location,any time,any problems quick response service.

     Our principle is Quality is First. Each quality key ponits from raw material to finish machining , packing and shipment will have the inspector to control the production quality management and ensure the 98% products percent of pass. And our execute standard can meet the international general standard, such as JB/GB/EN/DIN/JIS/ASME/ASTM/ISO. We are the training base of China Forging Association and after we set up our Jiangsu Huixuan Technology Research Center, spectrometer lab, mechanical properties test lab, metallographic lab and NDT lab. There are direct reading spectrometer, carbon and sulfur analyzer, 300KN electronic testing machine, 600KN hydraulic testing machine, impact testing machine, metalloscope, oxygen nitrogen and hydrogen analyzer and so on, and can implement the NDT test such as UT, MT, PT and so on to ensure the product quality.

    We can provide the forging with weight from 0.5t to 150t, and our main products are megawatt wind power main shafts, hydropower and thermal power rotors, power station auxiliary equipment spare parts, ship forgings for power of bent exle or propulsion of shafting, kinds of mining machinery forgings, step shafts, large gear rings, offshore oil and gas engineer forgings, oil forgings, special pressure vessel forgings and some others that can be used in kinds of heavy industry equipments field.

    We are qualified by the classifications such as ABS, CCS, BV, LR, DNV, GL, KR, NK, RINA and got the approval certifications. Beside that, we also have PED pressure equipment production license of TUV and "special equipment manufacturing license". We also gain some honors such as " Jiangsu Province High-tech and New Enterprise"," Jiangsu Province Private Technology Enterprise", and" China Top 10 Wind Power Main Shafts Manufacturing Enterprise "," National Quality Management Best Award of Excellence "," Jiangsu Province Excellent Private Enterprise "," Jiangsu High Quality Products ", " Jiangsu Fareast International AAA Credit Rating Enterprise".

     We invite the domestic and foreign merchants to cooperate sincerely and seek the common development, to create the brilliant together! !
